TDC650 Handheld GNSS

Trimble Precision in Your Hands

Category:

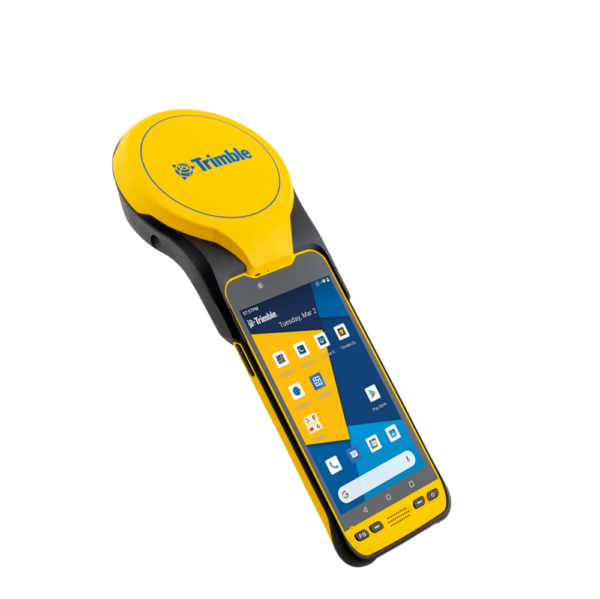

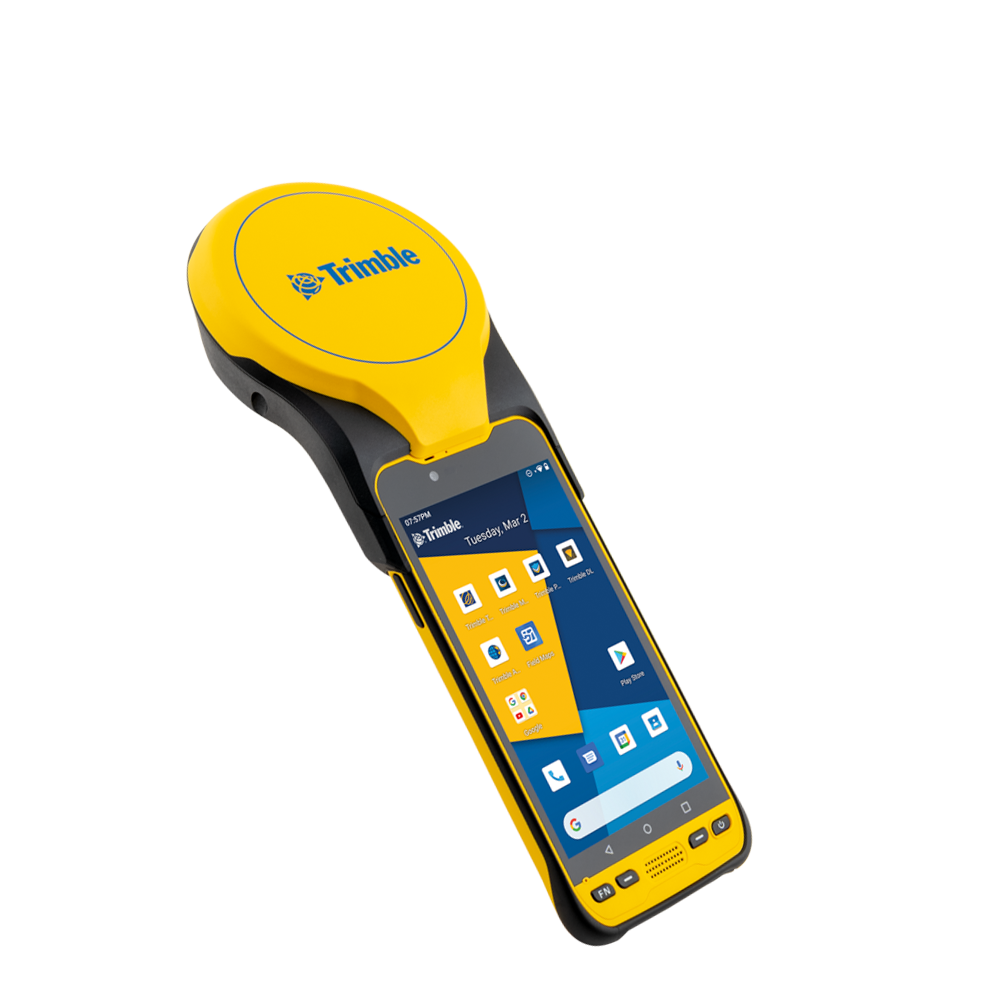

The Trimble® TDC650 is the ultimate high-performance GNSS handheld receiver for GIS professionals and surveyors.

Slim, rugged and easy to use, the Trimble® TDC650 boosts productivity and delivers maximum positioning accuracy in a single integrated solution. By combining the flexibility of a handheld with intuitive Android™ simplicity and robust field applications, it is the productive partner you need that puts Trimble precision firmly in your hands.

tdc650_text2
High-accuracy in your hand

Scalable high-accuracy positioning, from meter- to centimetre-level, even in the hand, without requiring a pole and external antenna.


tdc650_text3
Professional app support

Optimize to run Trimble TerraFlex, Trimble Penmap & Trimble Access field software. Fully integrated with Esri® ArcGIS® Field Maps.


tdc650_text4
Android simplicity

Google MobileTM services certified to run Google core applications and access any app on the Google PlayTM store.


tdc650_text5
Handheld convenience

Ergonomic, streamlined form factor enables easy handling and portability in the field.


tdc650_text6
Built Trimble tough

Rugged IP67-rated design with military certification keeps you working in all conditions and environments.


tdc650_text7
Maximise handheld accuracy

Innovative TerraFlex and Penmap workflow uses the camera as a virtual pole, enabling horizontal centimetre accuracy in the hand.

Key Specifications

Operating System

Android 10

GNSS Accuracy

1-100 cm

Screen Size

15.2 cm/6″

Battery Life

8 hours

Weight

0.79 kg

Camera

13 MP / 5 MP

Trimble TDC650 features at a glance

profperf

Professional performance

Integrated GNSS receiver provides full constellation support for real-time positioning

touchscreen

Large 6-inch touch screen

Supports smartphone-like operation with a bright display for easy viewing in sunlight and shadow

battery

High-capacity battery

Long lasting removable battery enables continuous operation in the field

communicate

Communicate from the field

Wi-Fi and integrated high-speed 4G LTE cellular data connectivity keeps you connected with the office

processor

Powerful Qualcomm processor

Fast 2.2 GHz CPU with 4 GB memory and 64 GB internal storage easily processes large amounts of data, photos & videos

flexible-workflows

Flexible workflows

Compatibility with a wide range of Trimble and partner field data collection solutions, including Trimble TerraFlex, Esri ArcGIS Field Maps
